During a recent façade inspection of a 6-story masonry building constructed in 1899, I was impressed by the excellent condition of the original materials that made up its façade, especially considering they were well over 100 years old. This got me thinking about why so many historic masonry buildings continue to perform remarkably well with little more than routine maintenance, while more modern buildings sometimes struggle with chronic water infiltration despite layers of sophisticated waterproofing membranes.
The answer lies in two fundamentally different philosophies of moisture management: historic reliance on architectural detailing versus modern reliance on membranes and barriers. Understanding these distinct approaches is essential when repairing or restoring older structures, as well as when diagnosing failures in newer ones.
Historic Masonry: Waterproofing Through Design, Not Layers
Before the advent of fluid‑applied membranes, peel‑and‑stick barriers, and vapor control layers, masons and architects relied on the building itself to manage water. Historic masonry façades—particularly those built prior to the mid‑20th century—used a concept that can be summarized simply:
Water will get in, so design the building to handle it.
Key characteristics of the historic approach include:
Mass Masonry as a Moisture Reservoir
Thick brick or stone walls absorbed rainwater and released it slowly through drying. These assemblies were intentionally breathable. Their performance relied on material properties, not added layers.

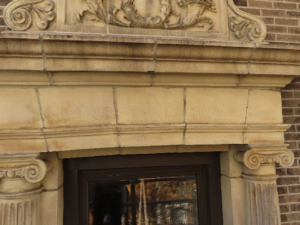

Heavy Reliance on Craftsmanship and Detailing
Architectural detailing was the first line of defense:
- deep roof overhangs
- projecting cornices
- belt courses
- window drip edges
- sloped masonry sills
Every feature encouraged water to shed, drip away, or evaporate before it could migrate deeper into the wall
Vapor-Open Assemblies
Because these buildings were uninsulated and had no internal vapor barriers, walls could dry to both the interior and exterior. This high drying capacity made moisture intrusion far less catastrophic.
Lime Mortar and Breathable Materials
Lime-based mortars and plasters accommodated movement, wicked moisture, and self‑healed microcracks—performance characteristics modern Portland cement–based materials struggle to replicate.
The result? Buildings that could tolerate moisture without significant deterioration—so long as the original detailing remained intact.
Modern Masonry: Waterproofing Through Layers and Barriers
In contrast, today’s masonry façades—particularly veneer systems—use a very different philosophy:
Keep water out at all costs.
Because these façades are typically thin, non‑structural veneers rather than mass walls, they depend heavily on concealed moisture control systems:
Membranes and Fluid-Applied Barriers
Modern walls incorporate:
- air barriers
- vapor barriers
- water‑resistive barriers
- through-wall flashing membranes
These layers are expected to handle what the masonry itself cannot.
Complex, Multi-Layered Assemblies
Modern buildings rely on:
- cavity drainage systems
- weeps and vents
- insulation layers
- internal metal flashing
- sealant joints
The performance of the wall depends on numerous products functioning perfectly together. Any discontinuity—especially around windows, shelf angles, or roof transitions—often become a failure point.
Reduced Drying Capacity
Because modern walls often include:
- rigid insulation
- impermeable barriers
- sealed interiors
The wall’s ability to dry is significantly reduced. When moisture does penetrate (and it inevitably does), it can become trapped, leading to deterioration, mold, or corrosion of embedded steel elements.
Where Problems Arise: Applying Modern Thinking to Historic Walls
One of the most common restoration mistakes occurs when modern waterproofing strategies are forced onto historic masonry. For example:
- Applying impermeable sealers to historic brick can trap moisture.
- Inserting vapor barriers in historic wall systems can cause freeze‑thaw damage.
- Using rigid, non-breathable mortars can accelerate brick spalling.
Historic walls were never designed to be sealed tight. They function best when allowed to breathe and manage moisture through absorption and evaporation.
Where Problems Arise in Modern Construction
Modern buildings fail when:
- membranes are improperly lapped,
- flashings are discontinuous,
- sealant joints fail prematurely, or
- cavity drainage is blocked.
Unlike historic walls, modern façades offer very little tolerance for mistakes. Poorly detailed or improperly installed moisture control systems like wall membranes or flashings can lead to extensive hidden damage.
Bridging the Gap: A Consultant’s Perspective
When restoring historic masonry, the goal is not to impose modern waterproofing ideology but to respect and enhance the building’s original moisture-management strategy.
This may involve:
- repairing or recreating historic detailing,
- using breathable materials,
- ensuring proper shedding of water,
- allowing walls to dry as originally intended.
Conversely, for modern façades, the priority is validating the integrity of every membrane, joint, and flashing—because the assembly depends on them.
Understanding these two philosophies is critical. Historic buildings excel at managing water, while modern buildings attempt to exclude water. Both strategies can work brilliantly—or fail dramatically—but only when respected as distinct systems.
Sr. Building Envelope Consultant
Duffy Engineering
